Thursday, January 28, 2016

Atom GSM Communicator – Panic SMS Alert Device

Active Atom GSM Communicator Device can be used as an compact Panic SMS Alert Device by Connecting an Panic button to device input ,Once the Panic Button is Pressed it triggers the Atom device and the device sends SMS alerts to Stored numbers.The Device uses GSM Frequency to send sms alerts (SIM Card To be inserted in Device). It can be useful in various areas for security purposes, Few examples Listed below.

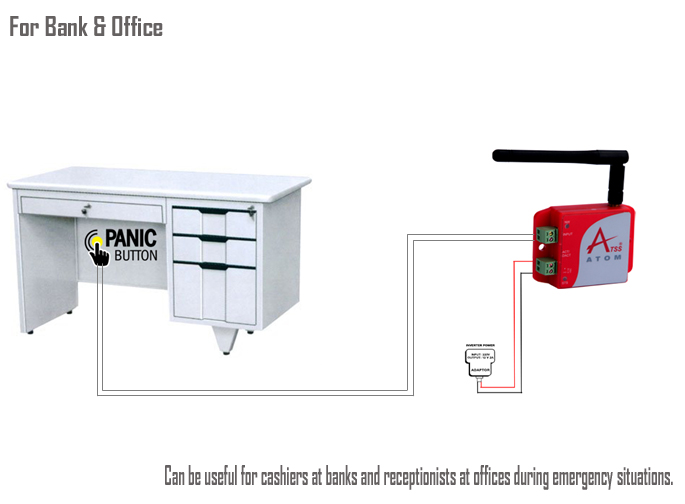

Atom as Panic SMS Alert Device For Office & Banks.
panic sms alert bank atom gsmcommunicator chennai india
By connecting an panic button to Atom input You have an simple and effective solution to inform others during an emergency situation for help.These buttons are supposed to be hidden for security reasons, but at the same time they need to be accessible. You may install a panic button under the table or some other accessible but hidden corner of a furniture item.

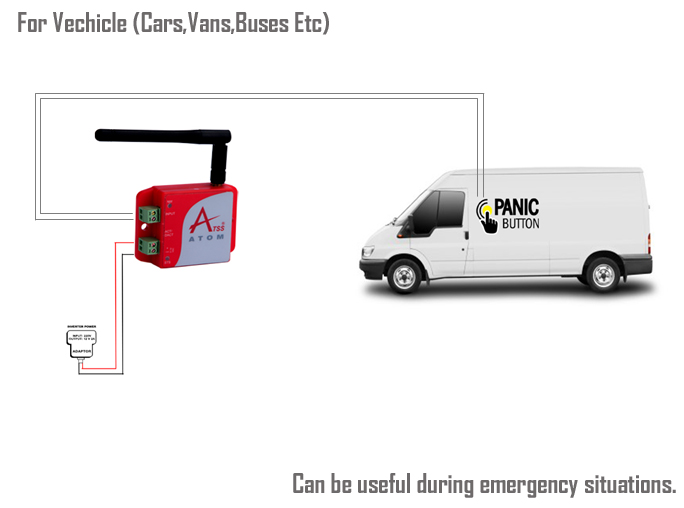

Atom as Panic SMS Alert Device for Vehicles.
atom vechicle panic sms alert device atom gsm communicator india chennai
Atom can be used as an Panic SMS Alert security device in Cars,Cabs,other vehicles.This also Provides more security to people who are travelling in Cabs. Once pressed it will send Help messages to stored numbers during emergency situations.

Monday, October 12, 2015

Active Informer - 8 Zone GSM Communicator

What is Active Informer ?

Informer (8 Zone GSM Communicator) is a Electronic Security Device Which Can Send Sms Alert, Make Call to Stored Numbers When an Zone Is Open/Closed.


Features :
  • 8 Zones available
  • Zones activation /deactivation can be done through SMS/ANDROID application
  • Both Zone Open and close alert available
  • Option to Receive Only Zone open alert or Zone close alert or Both available.
  • Instant SMS/Call alert For zone open/close
  • Option to Receive only SMS Alert or Call Alert or Both available.
  • Panic button is available.
  • Memory available to store 4 phone numbers, 1 Admin mumber.
  • Device can be controlled through android application
  • Editable 15 Bit SMS Alert Message
  • Different alert SMS can be set for each zones .
  • Compact Design
  • Extremely user friendly
  • Having  network led to know signal strength
  • Having status led to display board is in idle or doing some operation

Where Can Be it Used ?

Active Informer Can be used in Offices,Homes,Alarm Systems(fire,intrusion) etc.It depends Upon Your Need,Informer Has 8 inputs you can use it as you wish.

How To Program it ?

Informer Can Be programmed Using Mobile SMS commands or Android App.

Connection Diagram




Informer Device Specifications:

POWER SUPPLY

Supply Voltage
12-24 V
Total current output
2 amp (max)
ZONES

Zone Response time
<500 millisecond
Zone loop resistance
<5 kilo ohm for normally closed
Maximum Length of sensor cable (multicore cable)
150 m ( Depends on cable resistance)
GSM Antenna
3 db
ENVIRONMENTAL

Environment
Residential/commercial/Light Industrial
Maximum Humidity
95% Non- condensing

To Know More Details & Price Contact Us.

Wednesday, September 9, 2015

ATOM - GSM SMS alert communicator

ATOM -GSM SMS alert communicator for fire/intrusion/video surveillance systems.


ATOM
What is ATOM ?

Atom -GSM Communicator is a single zone system which will allow your alarm to communicate signals via the GSM cellular frequency.

Features :
  • Single Zone
  • Zone activation /deactivation can be done through SMS/ANDROID application
  • Both Zone Open and close alert available
  • Option to Receive Only Zone open alert or Zone close alert or Both available
  • Instant SMS/Call alert For zone open/close
  • Option to Receive only SMS Alert or Call Alert or Both available
  • Memory available to store 4 phone numbers, 1 Admin Number
  • Device can be controlled through android application
  • Editable 15 Bit SMS Alert Message
  • Compact Design
  • Extremely user friendly
  • Having network led to know signal strenghth
  • Having status led to display board is in idel or doing some operation

Applications :
  • Fire Alarm
  • Intrusion Alarm
  • Video Surveillance system (with alarm output)
  • Automation equipment's with Relay to connect Atom(Should be tested)
  • Office/Home - server room/locker room for security purpose

Connect ATOM to Fire Alarm :






Connect ATOM to Burglar/Intrusion Alarm :
 Connect ATOM to DVR (Alarm output) :

Connect ATOM to office/house (server/important rooms ) for security purpose :

BENEFITS OF ATOM :
  • Connect with Fire/Intrusion alarm and get SMS /Call alert
  • Use in office /home and be informed about activities of Door open/close of important rooms
